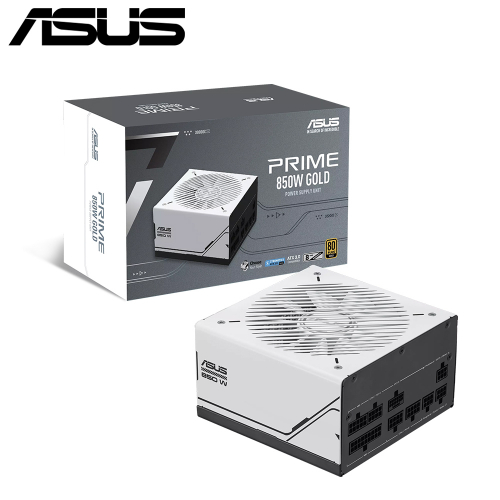

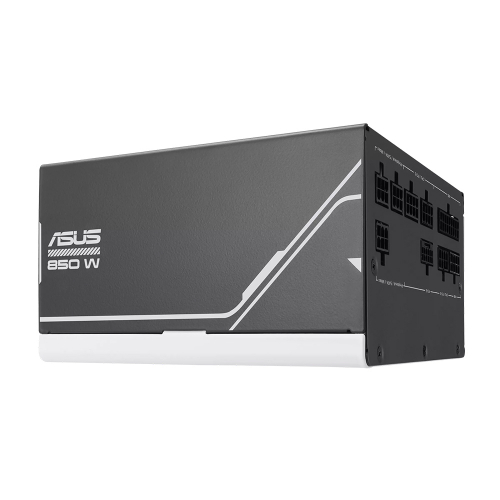

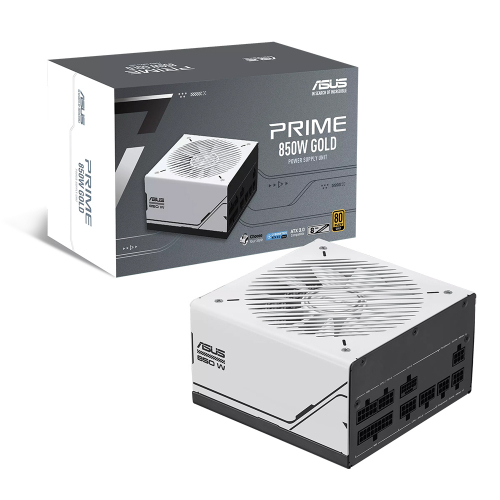

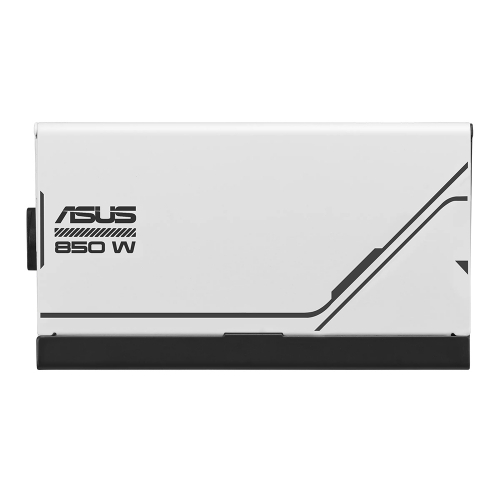

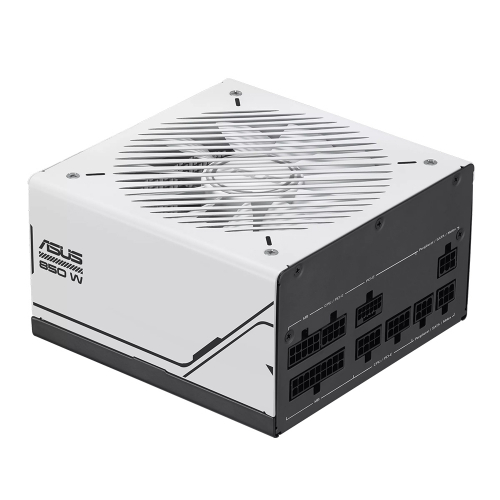

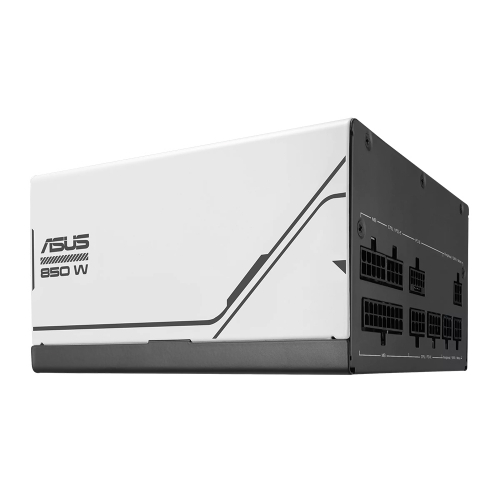

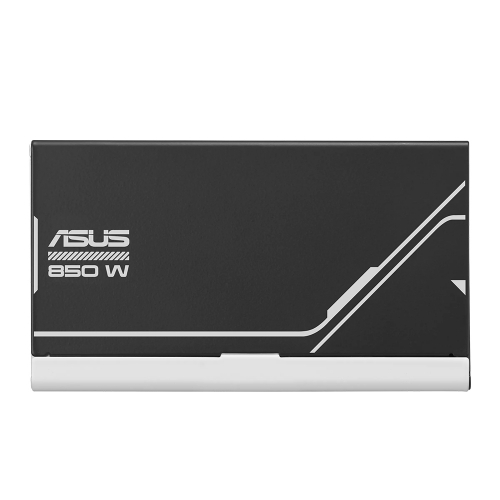

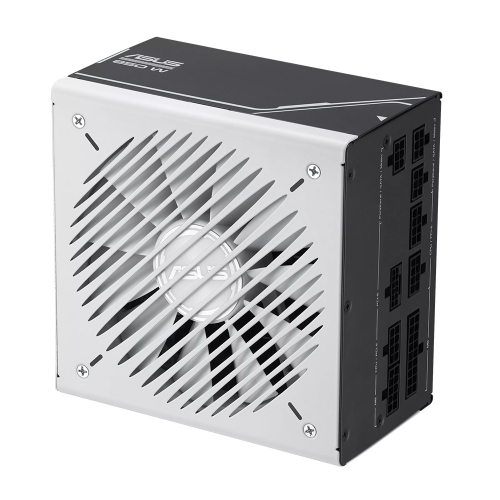

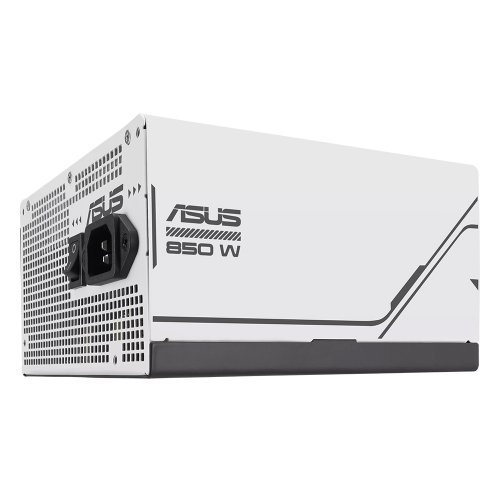

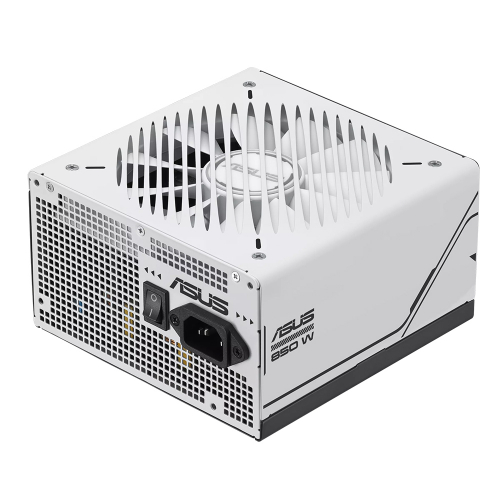

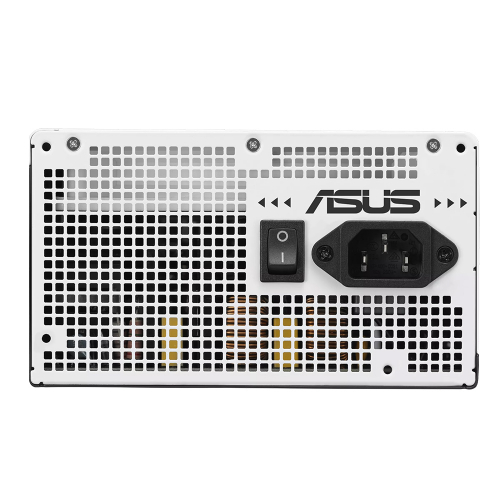

華碩 Prime 850W Gold 80+金牌/全模組/ATX3.0/雙滾珠軸承/8年保
- ★ 雙滾珠軸承風扇 的使用壽命可達到一般油封軸承設計的兩倍長。
- ★ 80 Plus 金牌認證 使用低 ESR 電容和其他高级元件所獲得的結晶。
- ★ ATX 3.0相容： ASUS Prime 金牌電源供應器符合 ATX 3.0規格並附帶一條 16-pin PCIe 線材，該線材與 PCIe Gen 5.0 顯示卡相容。
- ★ 包括 8 年保固 。
![信用卡付款 [一次付清]](data/payment/icon/1504051052549043192.png){kind=icon}
| 型號 | AP-850G |
| Intel Form Factor | ATX12V |
| ATX 3.0 | Yes |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus 金 |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 20A 20A 70.5A 0.3A 2.5A |
| Combined Load | 110W 110W 846W 3.6W 12.5W |
| Total Output | 850W |

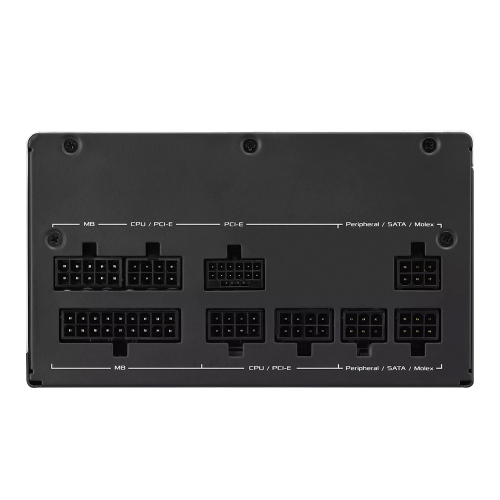

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & connector side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 3 |

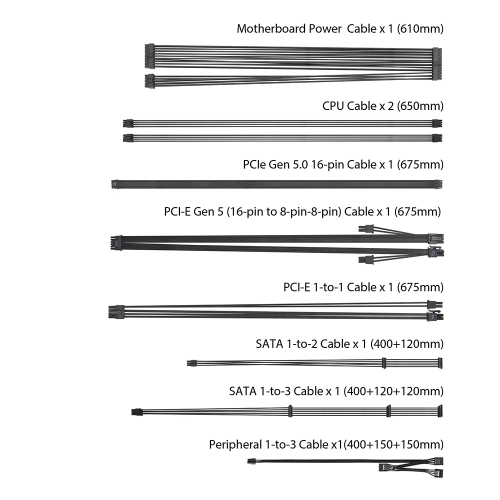

| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) User Manual x 1 |
| Weight | 1.502 kg (single PSU) |
| 0dB Fan Button | Supported. The fan shuts off entirely when the PSU is under certain load |
| 商品資訊若有誤植，以原廠公佈為主 | |
